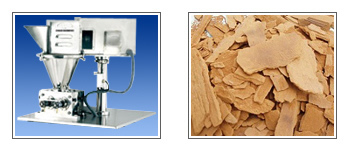

Mini Roll Compactor cGMP
- 100 DIA X 25 (W) Water Jacketed
- Useful Small Batches, Water Jacketed.
- Very compact design with Water Jacketing facility.
- Screw is driven through A.C. Drive.
- Safety slipping clutch between gearbox and feed screw.
- Separate Electric Control Panel.
Salient Features
-
Useful Small Batches, Water Jacketed. -
Very compact design with Water Jacketing facility.
-
Screw is driven through A.C. Drive. Safety slipping clutch between gearbox and feed screw.
-
Separate Electric Control Panel.
Technical Specifications
| MODEL | ACRA-RC-100/25 |
| Working Capacity* | 2 to 5 Kgs./Hr |
| Roll Speed | 2-29 RPM Variable |
| Screw Speed | 5-86 RPM Variable |
| Roller Motor | 1.5 Hp / 3 Ph |
| Feeder Motor | 1 Hp / 3 Ph |
* Depending upon material characteristics & available room atmosphere only.
OUR INNOVATIONS
-
The results obtained can be further improved by a production size machine.
-
The compact & portable design allows mobility for testing at a convenient place.
-
The Compacting Roll is designed to provide a uniform force distribution to create uniform bulk density & to give fine granules of uniform quality after further process, thus granules of equal quality are produced.
