High Speed Single Rotary Tablet Press

•
  High Speed Tablet Press – “ACCURA” MODEL ATX-I WITH 37 Stn. "D'', 45 Stn. "B", 55 Stn. & 61 Stn. "BB.
•
  It is a high speed single rotary tablet press for higher tablet output.
•
  The machine having Hydraulic Power pack for pressure loading and overload release.
•
  Machine is having center shaft driven turret through heavy duty reduction gear box.
•
  The machine is having Electromagnetic Clutch arrangements.
•

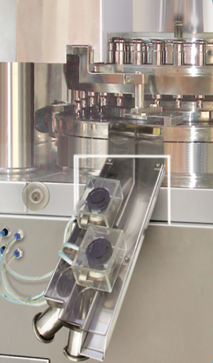

  The machine is having bottom driven force feeding system for material feeding.
•
  The machine is having one piece turret of special grade casting.
•
  However, three piece turret with SS-316L middle plate is also available (optionally).
•
  Electro less nickel plating can also be available to the turret. (optionally).
•
  Guards interlocked for safety, all upper guards of transparent acrylic material.
•
  Lower Guards of polished Stainless Steel SS 304.
•
  All the tablet parameters can be fine tuned during the operation of the machine from outside.
•
  the tableting zone, with front controls at outside of the machine, having SEIKO type dials. Machine is Three sides open with Acrylic upper Guards.
•
  Control panel is at backside of the machine & all controls are on tablet ejection side.
•
  The machine is having A.C. variable frequency drive for the main motor & for force feeding motors to synchronize machine's speed & feed both.

With Automation, CFC & AWC (Optionally)

•
  With Motorized dozer, for precise depth of fill adjustment.
•
  With load cell at Main Compression for Pressure measurement.
•
  With auto sampling based on, either time or revolution of punch no.
•
  With auto rejection of any single tablet out of prescribed compaction force limit.
•
  With SCADA with industrial PC. having 12” colour touch screen (21 CFR part 11 compliance).
•
  With graphical as well as numeric representation of each individual punch force.
•
  Auto tablet rejection & Random sampling during start & stop of the m/c. (Optionally).
•
  Servo motor mechanism for tablet thickness / depth of fill Auto dialing though PLC. (Optionally).
•
  PLC-HMI color touch screen (Optionally).
