High Speed Double Rotary Tablet Press

Salient Features

---

•
  Single Rotary Tablet Press.
•
  Capable to Produce Single Layer Tablet, Bi-Layer Tablet, Tablet in Tablet (Single Layer), Tablet in Tablet (Bi-Layer)
•
  Compact & effective core tablet feeding system.
•
  Core feeding unit preciously synchronies with Turret.
•
  Vertical core tablet feeding system.
•
  Sensor for core feeding tablets.
•
  Vibratory hopper for core tablet with sensor.
•
  No fill tablet rejection system.
•
  Auto rejection, of any single tablet, out of prescribed compaction force limit based on CFC with Auto weight control facility
•
  Special Hopper for core tablet low level sensor.
•
  Specially designed heavy C.I. Structure.
•
  Heavy Duty oil Immersed Gear Box for Turret drive
•
  AC VFD with Electromagnetic Clutch
•
  Directly Driven Turret having middle plate of SS-316 & ELNP on SGI Portion.
•
  Motorized Dozzer, for precise Depth of Fill adjustment.

•
  Motorized force feeder with Zero Clearance, with Three Paddle design.
•
  Vibration free and easy to operate.
•
  Main & Pre Upper Punch Penetration.
•
  Load cell at both Main & Pre Compression.
•

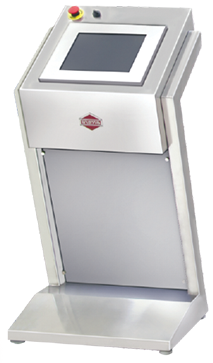

  Machine is Four Sided open with Upper Guards, Control Panel is Separate.
•
  With interlock switches to all upper guards.
•
  All major control (Main Compression, Pre Compression, Dozzer, RPM etc) through Industrial PC
•
  Auto Sampling based on, either time or revolution or punch nos.
•
  Initial Start up & Stop Rejection.
•
  Graphical appearance of the value of pressure on individual punch at pre and main pressure.
•
  Recipe management & 'n' No. of recipe storage.
•
  Audit trail reports, and pen drive connectivity with printing facility.
•
  Motorized Main Compression of 10 Tons (100 kN) & Pre-Compression of 3 Tons (30 kN).

Selection Of Power Supply Out Of (A) (B) (C), Points Should Be Mention Clearly At The Time Of Preparing Purchase Order.

•
  Pre-pressure and Main pressure could be changed depending on the size of the compress and filling depth, powder or granulation. It is dependent on the physical specification of the used material for the compress.
•
  The above specification is the subject to change without prior notice for the technical development.
