Why Herbal Tablet Press Selection Starts with the Material
A tablet press machine for Ayurvedic tablets uses the same mechanism as any pharmaceutical tablet press machine. Powder or granules fill a die, punches compress the material, and the tablet is ejected. What differs in Ayurvedic tablet manufacturing is the material entering the die, and how it flows, bonds, and releases from the tooling.
Herbal tablet manufacturing should therefore begin with the formulation and tablet specifications rather than the industry label. In most plants, the press is a rotary tablet press machine configured for the product. Its feeder, tooling, fill depth, compression capability and cleaning access should be matched to measured material behaviour and production targets.
Ayurvedic and Herbal Tablets Compared with Pharmaceutical Tablets
The process sequence is familiar. It covers powder or granule preparation, blending, lubrication, die filling, precompression where required, main compression, ejection, dedusting, inspection and packaging. The differences lie in how botanical materials behave at several of these steps.
Depending on the product, herbal blends may show greater raw material variability, fibrous particles, sticky or hygroscopic extracts, natural oils or resins, and low or variable bulk density. Some also have a broad particle size distribution, strong colour or odour, higher tablet weights or more dust. None of these applies to every herbal tablet, and conventional pharmaceutical blends can have their own flow, sticking or capping difficulties.
Raw Material Variability
Plant source, harvest period, drying, milling and storage all shape botanical materials. Two lots of the same herb may differ in moisture, particle size or density. These shifts can change flow, die filling, compression force, tablet weight, hardness, friability, disintegration and ejection. They can also limit the speed at which the press runs consistently.
This variation must be controlled upstream. A tablet press does not replace botanical authentication, supplier qualification or formulation development. Nor does it replace testing for contaminants, moisture, particle size and microbial load.
Whole Herb Powders and Herbal Extracts
Whole Herb Powders
Milled leaves, roots, barks or seeds may contain fibrous particles, have low bulk density and flow poorly. They can trap air during compression and vary in particle size. Some also wear punches and dies, and fibrous particles may resist bonding.
Dried Herbal Extracts
Some extracts are hygroscopic and become sticky as they absorb moisture. Others have a high solid concentration, strong binding behaviour, poor flow, or sensitivity to heat and humidity. Where a product combines powders and extracts, these characteristics may interact.
The table below outlines considerations for herbal powder compression when evaluating a tablet press for botanical powders. Actual outcomes depend on the formulation.
| Herbal material characteristic | Possible compression challenge | Machine or process factor to evaluate |
|---|---|---|
| Fibrous powder | Air entrapment, capping or low hardness | Precompression, dwell time and granulation route |
| Sticky extract | Sticking, picking or build up on punch faces | Lubrication, punch face design, humidity control and speed |
| Hygroscopic material | Moisture uptake, loss of flow or weight drift | Room conditions, hopper exposure time and dry granulation |
| Low bulk density | Insufficient die fill or weight variation | Fill depth, tooling format and feeder type |
| Abrasive ingredient | Tool and die wear | Tool steel and inspection frequency |
| Oily or resinous material | Residue, sticking or cleaning difficulty | Lubricant level, cleaning access and excipient selection |
| Broad particle size distribution | Segregation or inconsistent filling | Blend design, feeder action and granulation |
Direct Compression and Granulation
Direct Compression
Direct compression may be considered where the final blend has adequate flow, suitable compressibility, acceptable segregation control, workable bulk density and consistent die filling. A directly compressible excipient can help. It will not make every herbal blend suitable, particularly when herbal content forms a large share of the tablet.
Wet Granulation
Wet granulation can improve flow, density, and compressibility in suitable formulations. It also has limitations for botanicals. Moisture-sensitive extracts may degrade or turn tacky; drying adds time and heat exposure; granule consistency must be controlled; and cleaning demands increase. It is not required for every herbal tablet.
Dry Granulation
Where adding liquid is undesirable, material can be roller compacted, then milled, screened, final blended, and compressed. Fluid Pack also manufactures roll compactor machines for this route, although not every herbal formulation needs one.
Powder Flow, Die Filling and Feeder Selection
Poor or inconsistent flow can cause variable die filling, weight variation, inconsistent hardness, hopper bridging and uneven feeder behaviour. It may also force a reduction in machine speed.
Gravity feeding relies on material flowing freely from the hopper through the feed frame into the dies. Force feeding uses rotating paddles to move material actively into the dies. This may help cohesive or low-density blends fill more consistently.
When configuring a tablet press for herbal tablets, consider flow, bulk density, cohesiveness, segregation risk, granule strength, feed rate, and required output. Not every herbal formulation needs a force feeder. Excessive paddle action can also break fragile granules, create fines or promote segregation.
Precompression and Main Compression
Precompression applies a lower initial load that rearranges particles and allows trapped air to escape, which may help certain low-density or fibrous blends. Main compression then forms the tablet at its final thickness and strength.
On any tablet compression machine, formulation, turret speed, dwell time and pressure together influence capping, lamination, hardness, friability, porosity, disintegration and ejection. Higher speed shortens dwell time. More force is not automatically better, because excessive pressure can increase capping, slow disintegration, or raise ejection force. Settings must be established for each product.
Tooling, Tablet Dimensions and Fill Depth
Tooling selection depends on tablet diameter, shape, thickness, target weight, bulk density, fill depth, compression requirement, embossing, output and ejection behaviour. B, BB, BBS or D formats should not be chosen from tablet weight alone, or simply because a product is described as herbal.
A low density herbal blend occupies more volume in the die. It may therefore need a greater fill depth than a denser formulation of similar weight. Check the press's maximum fill depth and tablet diameter for the chosen tooling against measured density.
Sticking, Picking and Ejection
Extracts, resins, natural oils, moisture uptake or inadequate lubrication may contribute to several problems. These include sticking, picking, build-up on punch faces, high ejection force, surface defects and interrupted production. Deep embossing can make picking more likely.
An investigation should not focus on the machine alone. Granulation, moisture, tool condition, punch design, lubrication, speed, compression settings and room conditions can all contribute.
Dust, Cleaning and Product Changeover
Herbal powders may leave fine dust, strong colour, persistent odour, and resinous or oil-containing residue. Cleaning plans should address the hopper and feeder, access to the compression zone and turret, tool inspection, dust extraction and drying of cleaned parts.
Line clearance, cross-contamination control and cleaning verification or validation complete the changeover. Procedures depend on the product and quality system. A standard press should not be assumed to provide any particular containment level; where containment matters, it must be specified and verified.
Practical Production Output
Maximum rated output is calculated at the highest turret speed with all stations in use. Validated operating speed is the speed proven for a specific product. Practical output is what the line achieves over a shift, and saleable output is what remains after rejects.
For herbal products, the gap between these figures may come from flow, feeder behaviour, tablet dimensions, fill depth, dwell time, sticking, rejection rate or cleaning frequency. Upstream granulation and downstream packaging capacity also limit what the herbal tablet production line can deliver.
Regulatory and GMP Considerations
Requirements depend on product category, manufacturing location, destination market, licensing framework and the facility's quality system. In India, the Ministry of Ayush information on ASU drug regulation places Ayurveda, Siddha, Sowa Rigpa and Unani drug provisions in Rules 151 to 169 and Schedules E(I), T and TA of the Drugs Rules, 1945. The same source identifies Schedule T as the GMP requirement for these manufacturers.
These rules are amended periodically. Manufacturers should confirm the current Gazette of India text with their licensing authority, and this article is not regulatory advice.
Hygienic machine construction, equipment qualification, cleaning validation, process validation, facility compliance and product approval are separate matters. Purchasing Ayurvedic medicine manufacturing equipment does not by itself make a facility compliant.
Fluid Pack Tablet Press Machines for Ayurvedic and Herbal Products

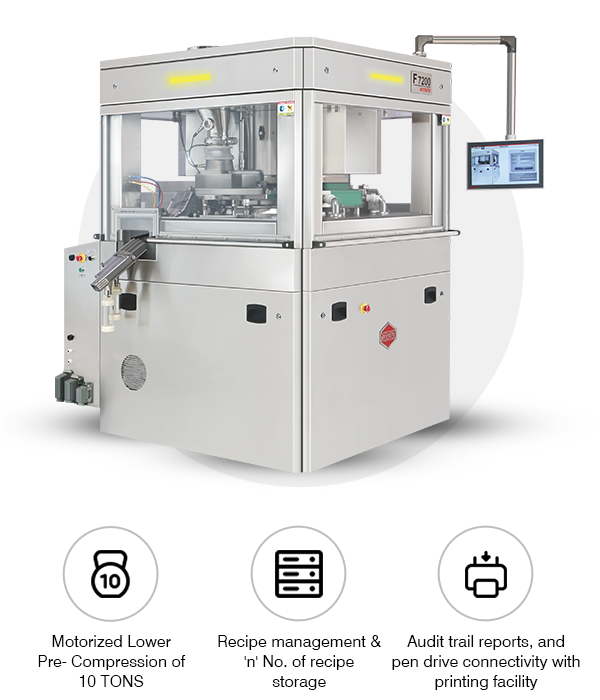

As a tablet press machine manufacturer, Fluid Pack offers the ACCURA tablet press machine range. It covers semi-automatic presses, a mini press, single and double rotary machines, and fully computerized ACT and F Series presses. These categories serve research, development, and commercial production, and none should be selected from tablet weight or output alone.
For formulation development, the Single Rotary Mini Tablet Press is listed in configurations from 8 to 12 stations with D, B and BB tooling. Detailed specifications are shown for the 8- and 10-station D versions and the 10-station B version. They include 60 kN maximum operating pressure, a 25 mm maximum tablet diameter with D tooling and up to 18,000 tablets per hour.
The same specifications list a 20.50 mm fill depth with D tooling, which is relevant to low density blends. They also list an upper punch entry setting for precompression. A force feeder and PLC are optional, which may help development teams study feeding and compression behaviour on smaller batches.
For commercial production, the D4 Single Sided Rotary Tablet Press is offered in 16- and 20-station D tooling and 23-station B and DB configurations. D models accept tablets up to 25 mm in diameter. Its paint-free tablet manufacturing zone and polished SS 304 lower guards may make cleaning around the compression area easier.
The D4 has a lower punch wiper seal designed to prevent lower punch jamming, which may help when processing fine powders. Force feeding and a PLC with colour touch screen are optional. The highest listed output, 57,960 tablets per hour, applies to the 23 station configuration. The suitability and achievable output of any model for a herbal product should be confirmed through technical evaluation and trials.
Information to Share Before Selecting a Herbal Tablet Press
Each item below narrows the choice of feeder, tooling, stations and compression capability.
- Product and formulation: Share the product category, the formulation where confidentiality permits, and whether ingredients are whole herb powders or extracts.
- Material properties: Particle size distribution, bulk and tapped density, flowability, compressibility, moisture, hygroscopicity and fibre, oil or resin content guide feeder, fill depth and tooling decisions.
- Process route: State whether you plan direct compression, wet granulation or dry granulation, because the route affects granule strength and feeding.
- Tablet specifications: Weight, diameter, shape, thickness, hardness, friability, disintegration and tooling preference determine stations, pressure and tooling format.
- Production and facility: Batch size, required output, cleaning and containment expectations, automation, utilities and existing upstream and downstream equipment define scale and integration.
About Fluid Pack
Fluid Pack, established in 1983 in Ahmedabad, India, manufactures tableting equipment under the ACCURA brand. Its range covers the main stages of herbal tablet compression. Roll compactors support dry granulation, and tablet presses run from compact development models to high output rotary machines. Tablet punches and dies are available in TSM and EU standards. The allied equipment line includes tablet deburring and dedusting units and dust extractors, which are relevant where fine botanical powders are processed. The company serves pharmaceutical, nutraceutical and other tablet manufacturers.
Conclusion
The practical rule is to characterise the blend and define the tablet first, then match the press. Flow, density, manufacturing route, fill depth, tooling, compression needs, realistic output and cleaning requirements should guide the choice.
Ayurvedic and herbal manufacturers are invited to share their formulation characteristics, tablet specifications, batch size, tooling requirements and production targets with Fluid Pack. ACCURA configurations can then be assessed through technical review and product trials.
Frequently Asked Questions
Many can. What matters is whether the specific configuration offers enough fill depth, suitable tooling, an appropriate feeder, and adequate cleaning access for the blend. A press set up for a free-flowing formulation may need different options for a low-density herbal product.
Fibre can resist bonding, low density can trap air, hygroscopic extracts can turn sticky, and residual oils can weaken particle contact. Difficulty varies widely, and some botanical blends compress readily.
No. Blends with adequate flow and compressibility may suit direct compression. Granulation is usually considered when flow, density, segregation or bonding cannot be controlled through excipient selection alone.
Diameter, shape, thickness, fill volume based on bulk density, required force and embossing are reviewed together. A heavy tablet does not automatically require a particular tooling format. Deep embossing needs extra attention if the blend tends to pick.
The core information is material data, manufacturing route, tablet specifications, batch size, output targets, and facility constraints. Representative blend samples and any existing compression records can make the technical discussion more precise.
