Introduction: Why Troubleshooting Knowledge Is a Production Asset
Every pharmaceutical manufacturer who operates a tablet press machine will encounter production problems at some point. It is not a question of equipment quality alone. The tablet compression process involves the interaction of machine parameters, tooling condition, powder formulation characteristics, and environmental conditions, and problems can arise from any combination of these factors.
When a tablet press problem occurs during a production batch, the cost is immediate: material wasted, production time lost, batch documentation complicated, and potentially a batch failure that requires investigation and regulatory reporting. The manufacturer who can identify the root cause quickly, correct it accurately, and document the resolution correctly loses the minimum amount of production. The manufacturer who does not understand what they are looking at spends much longer resolving the problem, and may not actually fix the root cause, meaning it recurs.
This article gives pharmaceutical production teams a practical guide to the four most common tablet compression machine problems, covering the symptoms, root causes, and corrective actions for each.
Problem 1: Tablet Weight Variation
Weight variation is the most fundamental tablet quality parameter, and it is also one of the most common problems in tablet compression. Pharmacopoeial specifications allow only a narrow range of weight variation, and batches that exceed these limits must be rejected.
Symptoms
Individual tablet weights measured during in-process checks fall outside the target range. The automatic weight control system on a fully automatic tablet press triggers frequent rejections. Tablet hardness varies across the batch even when compression force appears consistent.
Root Causes
The most common cause of tablet weight variation is inconsistent powder flow from the hopper and force feeder into the die cavity. If powder does not flow consistently, some dies are overfilled and some are underfilled, producing tablets at different weights. Powder flow problems arise from formulation characteristics including poor powder flowability, excessive fines, high moisture content, or inadequate lubricant mixing.
Worn or damaged punches and dies also cause weight variation. If the die bore has worn to a diameter larger than specification, the filling depth will be inconsistent. If punch tips are worn or damaged, they may not penetrate to the same depth in each compression cycle.
At the machine level, turret speed set too high for the powder's flow characteristics is a frequent cause. If the turret moves faster than the powder can fill the die cavity consistently, weight variation results. The force feeder speed and paddle design also affect fill consistency.
Corrective Actions
Review powder flow properties of the formulation and adjust if needed, including granule size distribution, moisture content, and lubricant level. Reduce turret speed if powder flow is the limiting factor. Inspect punches and dies for wear, particularly die bore diameter and punch tip condition, and replace worn tooling. On fully automatic machines, verify that the auto weight control compaction force limits are set correctly for the formulation.
Problem 2: Capping and Lamination
Capping occurs when the top or bottom cap of a tablet separates from the tablet body after ejection. Lamination occurs when the tablet splits into horizontal layers. Both are serious defects that render tablets unusable and indicate a significant problem with the compression process.
Symptoms
Tablet caps separate immediately after ejection or during the downstream handling process. Tablets split into layers when subjected to hardness testing or packaging forces. The problem may affect all tablets or appear intermittently, depending on the root cause.
Root Causes
Capping and lamination are most commonly caused by air entrapment in the die during compression. When powder is compressed rapidly, trapped air cannot escape from the granule mass quickly enough, and it expands after the compression force is released, splitting the tablet. This is particularly common with fine powders, high-speed compression, and formulations that do not de-aerate readily.
Inadequate pre-compression force is another common cause. Pre-compression provides an initial gentle compression that helps air escape from the powder mass before the main compression event. If pre-compression is set too low, insufficient de-aeration occurs and capping results.
Formulation problems including insufficient binder content, excessive lubricant concentration, and incompatible excipient combinations also cause capping. Tooling problems including punch face wear and incorrect tablet concavity can contribute.
Corrective Actions
Increase pre-compression force to improve de-aeration before main compression. Reduce turret speed to allow more time for air to escape from the die. Review and optimise formulation binder level and lubricant concentration. Inspect punch tips for wear and replace if the face geometry has changed from specification. Check that upper punch penetration depth into the die is set correctly.
Problem 3: Sticking and Picking
Sticking occurs when tablet material adheres to the punch face during compression. Picking is when material is pulled from the tablet surface when the punch withdraws after compression. Both result in tablet surface defects and can cause production stoppage if the punch faces become severely coated.
Symptoms
Tablet surfaces show pitting, roughness, or material removal marks. Embossed letters or logos on the tablet face are incomplete or blurred. Punch tips show a coating of tablet material that builds up over the production run.
Root Causes
Sticking and picking are primarily caused by excessive moisture in the granulation, insufficient lubricant in the formulation, or ingredients with inherently sticky properties. High compression speeds that generate heat at the punch tip also contribute to sticking.
Tooling condition is a significant factor. Punch faces that are scratched, pitted, or have surface roughness beyond specification provide sites for material adhesion. Punch faces should be polished to a fine finish, and any surface damage promotes sticking. Inadequate punch face coating on specially coated punches is also a common cause.
Corrective Actions
Review granulation moisture content and reduce if above the target specification. Optimise lubricant level in the formulation, noting that both too little and too much lubricant can cause problems. Inspect punch face surfaces for scratch marks, pitting, or surface roughness and replace or repolish as needed. Reduce turret speed to lower the heat generated at the punch face. For formulations with inherently sticky properties, consider punch faces with special surface treatments.
Problem 4: Chipping and Edge Breaks
Chipping refers to small pieces breaking off the edges or surfaces of tablets after compression or during downstream processing. Edge breaks are specific chips at the tablet edge, particularly at the band where the upper and lower tablet faces meet.
Symptoms
Tablet edges show broken or rough areas. Fine powder or tablet fragments appear in the output chute or collection container. Tablets fail visual inspection for appearance defects.
Root Causes
High ejection speed is one of the most common causes of tablet chipping. As the lower punch pushes the tablet out of the die, excessive ejection speed creates impact forces that cause the tablet edges to break, particularly for brittle formulations.
Brittle tablet formulations with insufficient plasticity to absorb ejection forces are inherently prone to chipping. Formulations with high API content and limited binder or filler proportion are particularly susceptible. High main compression force applied to a brittle formulation also contributes.
Worn or damaged die edges, where the die bore entry is no longer sharp and clean, can cause tablet edge damage during ejection. The die bore entry should be inspected regularly and dies replaced when wear is visible.
Corrective Actions
Reduce ejection speed or ejection cam angle to lower the force applied during tablet ejection. Review formulation plasticity and consider adjusting binder type or level to improve tablet deformation characteristics. Reduce main compression force if tablets are over-hardened. Inspect die bore entries for wear or damage and replace worn dies. Ensure the ejection cam track is clean and correctly adjusted.
How Automatic Tablet Press Machines Reduce Troubleshooting Frequency

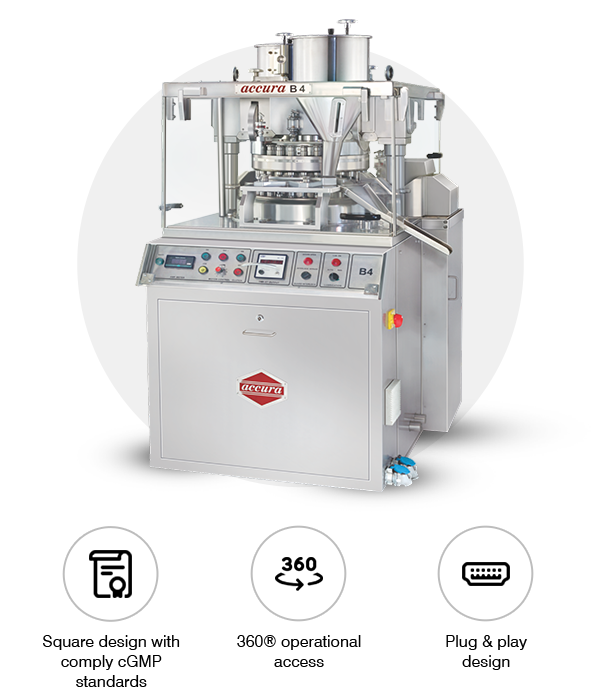

Many of the problems described above occur more frequently on semi-automatic tablet press machines where operator adjustments and manual monitoring are the primary quality control tools. Fully automatic tablet compression machines with compaction force-based auto weight control, locked parameter panels, and real-time monitoring reduce the frequency of these problems in several ways.
Auto weight control detects weight variation as it develops and adjusts the die fill depth automatically within the set limits, compensating for powder flow variations before they cause out-of-specification tablets. The locked control panel prevents operators from making undocumented parameter changes that can inadvertently cause compression problems. And the complete batch report provides the data needed to analyse any problem that does occur, identifying exactly when it started and what machine conditions were present at the time.
Conclusion: Rapid Root Cause Identification Is the Key to Minimising Production Losses
Tablet compression problems are an inevitable part of pharmaceutical tablet manufacturing. The goal is not to eliminate them entirely but to identify them quickly, understand their root cause accurately, and correct them without losing unnecessary production. The framework in this article gives pharmaceutical production teams the diagnostic knowledge to do exactly that.
For manufacturers who need technical support with specific tablet press troubleshooting situations, Fluidpack provides application engineering support as part of their after-sales service capability.
